Barbara Ann

Beach'n Sound

Features

  • 4 x 100 Watts RMS @ 4 Ohm
  • Angled Terminals for show quality installations
  • Old School Full Complimentary low distortion Class AB design
  • Butterworth Crossover Filters for serious
    high-end performance
  • DC, Short Circuit, Thermal and
    Overload Protection
  • Diagnostic LEDs
  • Audiophile Hi End Op. Amps

2 Year Warranty

Sale: $279

Amp usually ships out next bus. day using Fedex.
USA shipping only.

Download Specs

Download Manual

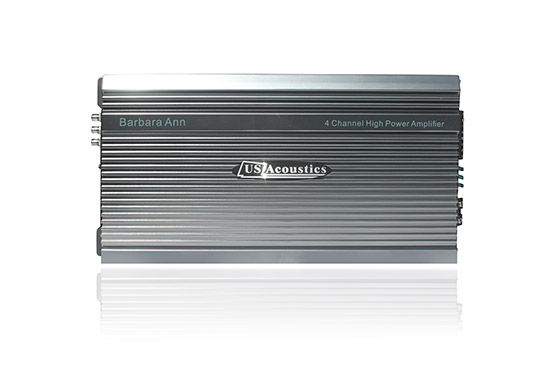

  • barbara ann high power car amplifier by US acoustics front
  • barbara ann high power car amplifier by US acoustics angle view

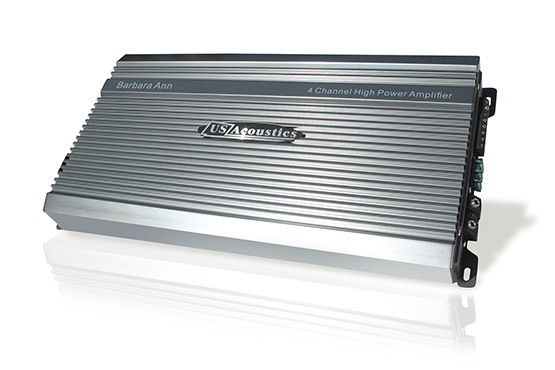

  • barbara ann high power car amplifier by US acoustics angle view2
  • barbara ann high power car amplifier by US acoustics angle view3

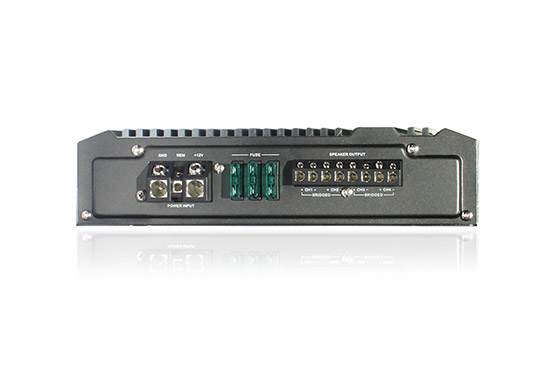

  • barbara ann high power car amplifier by US acoustics side1
  • barbara ann high power car amplifier by US acoustics side2

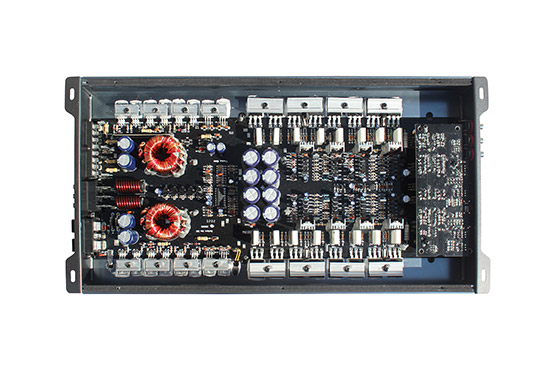

  • barbara ann high power car amplifier by US acoustics inside

Specifications

OUTPUT POWER @ 14.4V input
RMS per channel at 4 Ohms 100 W x 4 CH
RMS per channel at 2 Ohms 175 W x 4 CH
RMS Bridged Mono at 4 Ohms 350 W x 2 CH
RMS Mono at 1 Ohm N/A
INPUT SENSITIVITY 200mV - 6.0V
FREQUENCY RESPONSE 10Hz - 30KHz +/- 0.5dB
THD LESS THAN 0.01%
S/N RATIO > 97 dB
CHANNEL SEPARATION > 92 dB
DAMPING FACTOR @100Hz 4 ohm > 200
CROSSOVER RANGE CH 3&4, CH 1&2
High Pass, 12dB/Octave 15-500 Hz, 50-3K Hz
Low Pass, 24dB/Octave 50 - 500 Hz, 500 - 5K Hz
Band Pass N/A
Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
Wired remote bass control included No
Phase Shift (0 - 180 degrees) No
Fusing 3 x 35A
Size (L x W x H) in 17.7 x 8.9 x 2.2

Sound Supremacy!
