Nick

You're not a kid anymore!

Features

  • 1 x 2500 Watts RMS @ 4 Ohm
  • Thermally Stable Heat Sink design for maximum heat transfer efficiency

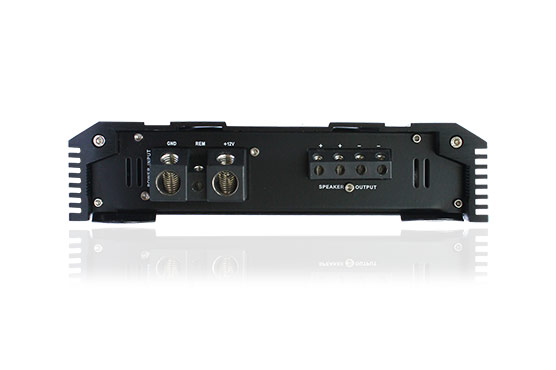

  • Extra Large Gauge Terminals for show quality installations
  • Extreme Bulk capacitor banks for High Power Stability

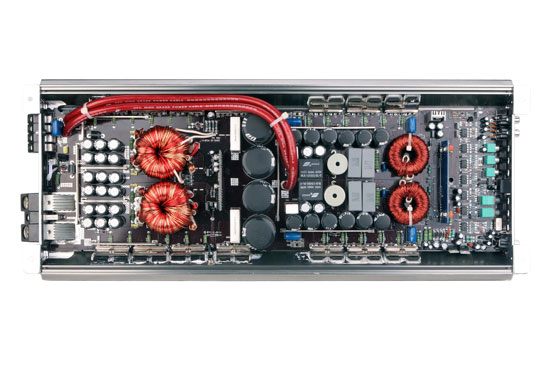

  • Designed with the latest Technology in Ultra Efficient Class D design
  • Butterworth Crossover Filters for serious high-end performance
  • Docking Pads® to reduce vibration and extend the life of your amplifier
  • DC, Short Circuit, Thermal and Overload Protection
  • Diagnostic LEDs

2 Year Warranty

Currently out of Stock

Download Specs

  • nick amplifier by US acoustics
  • nick amplifier by US acoustics
  • nick amplifier by US acoustics
  • nick amplifier by US acoustics
  • nick amplifier by US acoustics

Specifications

OUTPUT POWER @ 14.4V input
RMS per channel at 4 Ohms 625 W x 1 CH
RMS per channel at 2 Ohms 1250 W x 1 CH
RMS Bridged Mono at 4 Ohms N/A
RMS Mono at 1 Ohm 2500 W x 1 CH
INPUT SENSITIVITY 200mV - 6.0V
FREQUENCY RESPONSE 10Hz - 250Hz +/- 0.5dB
THD LESS THAN 0.5%
S/N RATIO > 105 dB
CHANNEL SEPARATION N/A
DAMPING FACTOR @100Hz 4 ohm > 300
CROSSOVER RANGE
High Pass, 12dB/Octave N/A
Low Pass, 24dB/Octave 10Hz - 250Hz
Subsonic 15Hz - 55Hz
Variable Bass Boost (0 to +12 dB bass boost at 50 Hz) Yes
Wired remote bass control included Yes
Phase Shift (0 - 180 degrees) Yes
Fusing (not supplied) External 250A
Size (L x W x H) in 19.7 x 8.4 x 2.2

Sound Supremacy!
