Lanna

Audiophile Sound!

Features

  • 6 x 150 Watts RMS @ 4 Ohm
  • Angled Terminals for show quality installations
  • Old School Full Complimentary low distortion Class AB design
  • Butterworth Crossover Filters for serious
    high-end performance
  • DC, Short Circuit, Thermal and
    Overload Protection
  • Diagnostic LEDs
  • Hi End Op Amps
  • Direct input, no crossover, Audiophile Amplifier
  • Discrete gain control for each channel

2 Year Warranty

Sale: $595
(currently not available)

Download Specs

Download Manual

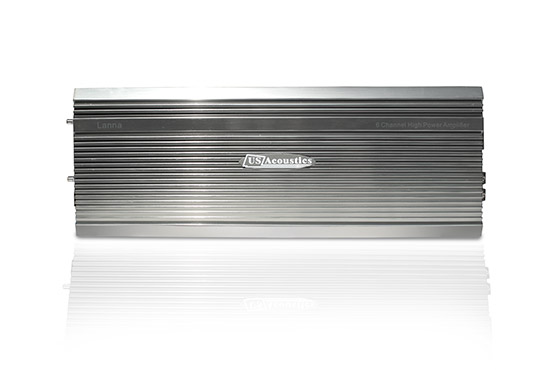

  • lanna high power 6-channel car amplifier by US acoustics front
  • lanna high power 6-channel car amplifier by US acoustics front

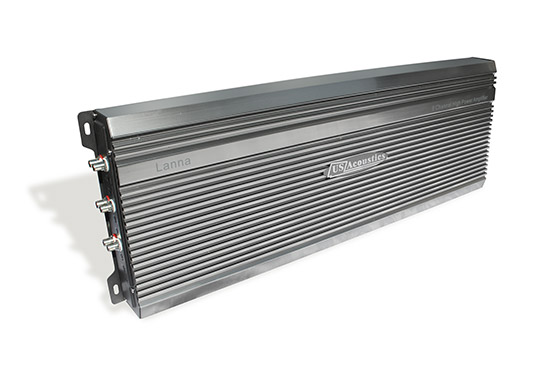

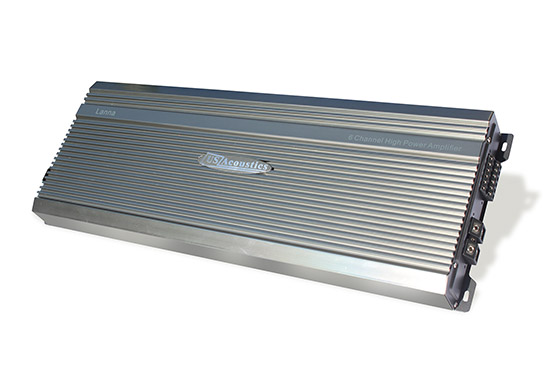

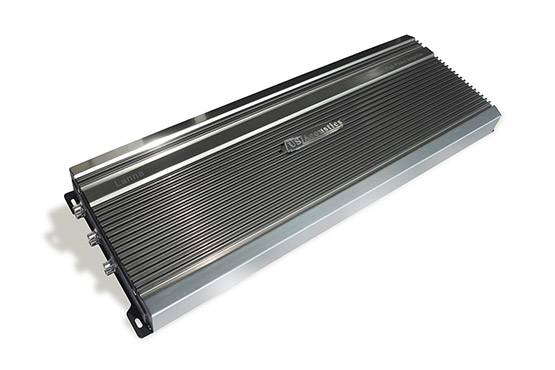

  • lanna high power 6-channel car amplifier by US acoustics angle view
  • lanna high power 6-channel car amplifier by US acoustics angle view
  • lanna high power 6-channel car amplifier by US acoustics angle view

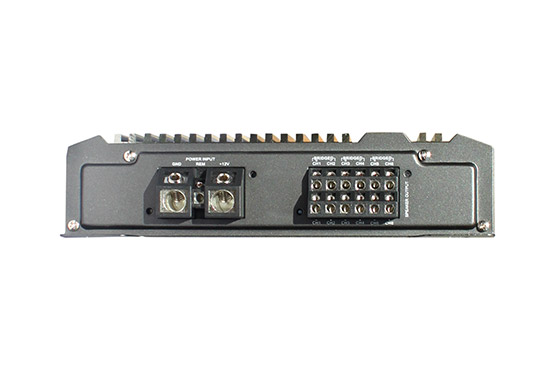

  • lanna high power 6-channel car amplifier by US acoustics side1
  • lanna high power 6-channel car amplifier by US acoustics side1

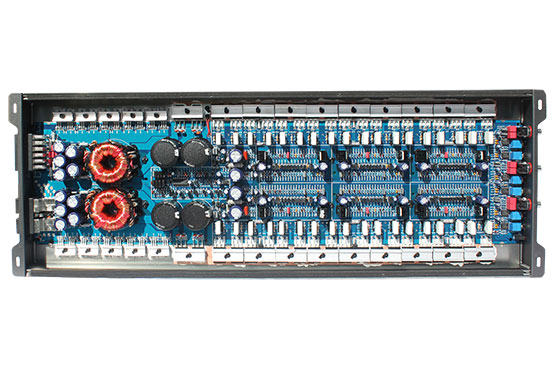

  • lanna high power 6-channel car amplifier by US acoustics inside

Specifications

OUTPUT POWER @ 14.4V input
RMS per channel at 4 Ohms 150 W x 6 CH
RMS per channel at 2 Ohms 250 W x 6 CH
RMS Bridged Mono at 4 Ohms 500 W x 1 CH
RMS Mono at 1 Ohm N/A
INPUT SENSITIVITY 0.2V - 6.0V
FREQUENCY RESPONSE 10Hz - 50KHz
THD LESS THAN 0.01%
S/N RATIO > 103 dB
DAMPING FACTOR @100Hz 4 ohm > 200
High Pass Cross Frequency 80 - 1.2K Hz
Channel Separation > 91 dB
Croosover Range
Low Pass Cross Frequency 10 Hz - 250 Hz
Subsonic Filter N/A
Fuse Size
Recommended Fuse 100A (not included)
Size (L x W x H) in 25.5 x 8.9 x 2.2

Sound Supremacy!
